Pre-Package Commercial Solar Water Heating

We offer pre-engineered commercial solar water heating packages that come in sizes ranging from 240 evacuated tubes to 480. Each package comes complete with every component required to successfully install and operate a larger commercial solar water heating system. If you need more energy, then we simply run two or 3 complete packages in parallel until the energy demand is covered.

Our pre-packaged systems are designed to be cost effective and quick to install.  No advance solar heating knowledge is required as the system has been built to include all the critical parts integrated into one compete package. This includes:

    1. Collectors
    2. Mounting brackets
    3. Stainless steel flex pipe
    4. UL certified solar storage tanks
    5. Quick connect high temperature fittings
    6. Solar Auto Air Vent
    7. Solar Pump Station with integrated Heat Exchanger
    8. RESol BS Solar differential controller
    9. Hi Temp Solar Glycol
    10. Solar controller
    11. Optional Remote Monitoring Service

Our packages all come with the option for online monitoring. The service is free of charge but does require an additional DL2 data logger to be connected to the RESOl Controller.

Sizes

The Commercial solar heating system come in 3 sizes SCH-8, SCH-12, SCH-16 and each size has a pre-defined storage tank size. The tank size will vary depending on the application. If the application has a consistent high volume of hot water usage then a smaller volume of storage is needed. If the system peaks and valleys in the hot water consumption then larger storage may be needed.

For most projects the economics make the greatest sense by using multiple 119 gallon tanks placed in parallel. However for certain projects we can also supply single tanks in large sizes up to 1000 gallons. However transportation costs and installation logistics can be prohibitive.

Solex DWHX

We use RESolSolex DWHX commercial pump station to transfer energy to the solar loop (Supply) and the Hot Water Loop (Demand). The Solex is an advance heat transfer station that uses a large stainless steel double wall heat exchanger with 30 plates to efficiently move the energy form the solar to the hot water.  The double wall heat exchanger is certified by ANSI standards for use with potable water. Because the heat exchanger is double walled, it has a built in leak detection with is required in certain states and provinces such as BC.

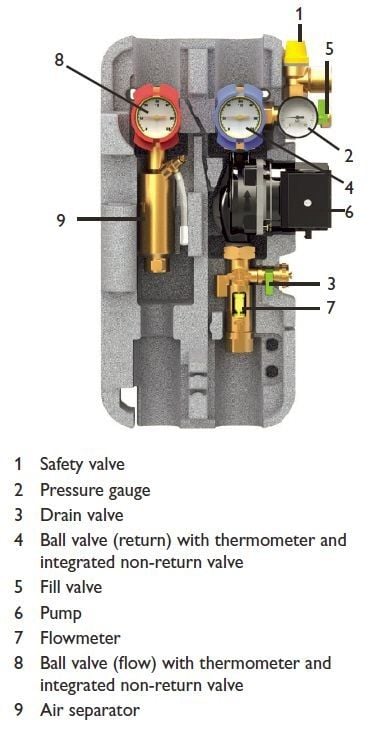

RESolSolex DWHX commercial pump station

Contact us for more information on our commercial solar water heater 1 800 759 8990.

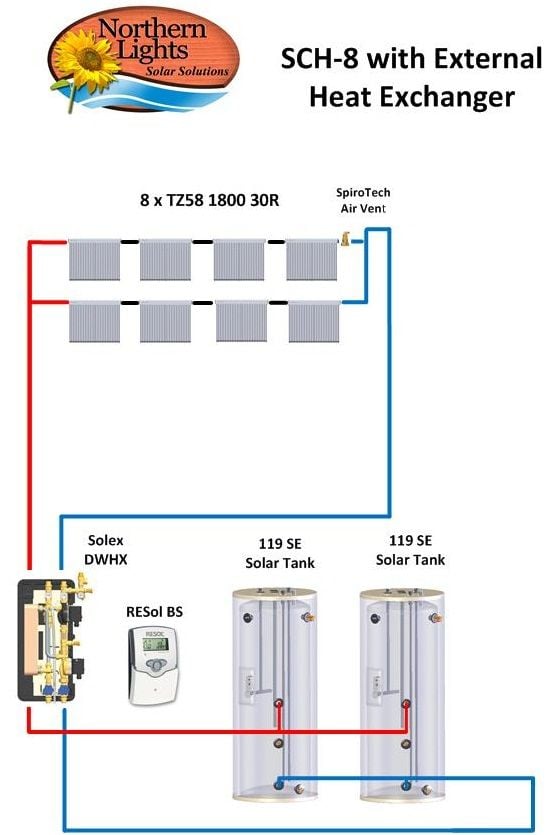

SCH-8 with external Heat Exchanger

SCH-12 with external Heat Exchanger

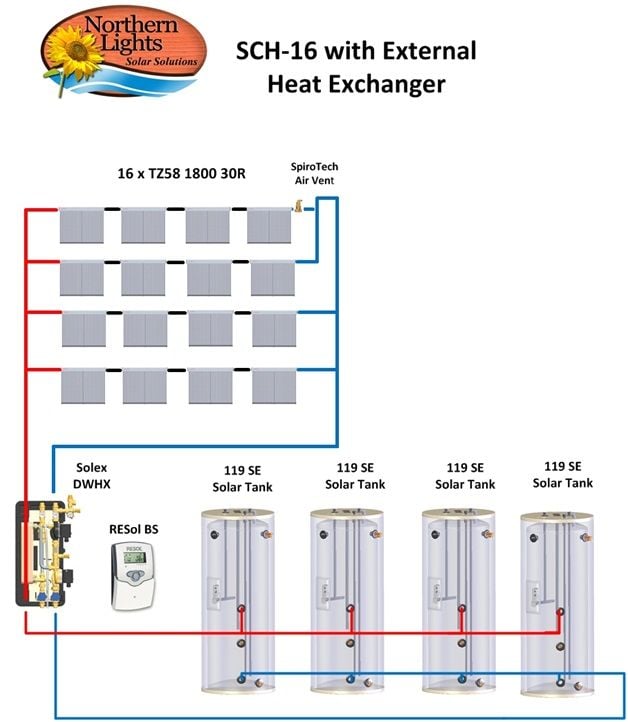

SCH-16 with external Heat Exchanger
