This article describes a home built by someone in Big Bar Lake in BC.  Approx 200 kms NW from Kamloops.  The home owner planned right from the start to try and heat the house with solar water Heating.

When trying to incorporate any renewable energy project into a building, it makes more sense to make sure the home is as well insulated and efficient as possible in the first place as this will minimise the non renewable energy you need to replace.  This article describes the system and the house to help other people who are wanting to install solar water heating in the home.  Remember that this system will also apply to commercial buildings aswell.

The article is a follow on from a previous article on solar hot water storage tanks describing cost effective large solar tanks that can be used in these projects.

After you read the article on the solar water storage tanks, you will now know why you need large tanks for solar hot water systems so back to the story of the house.

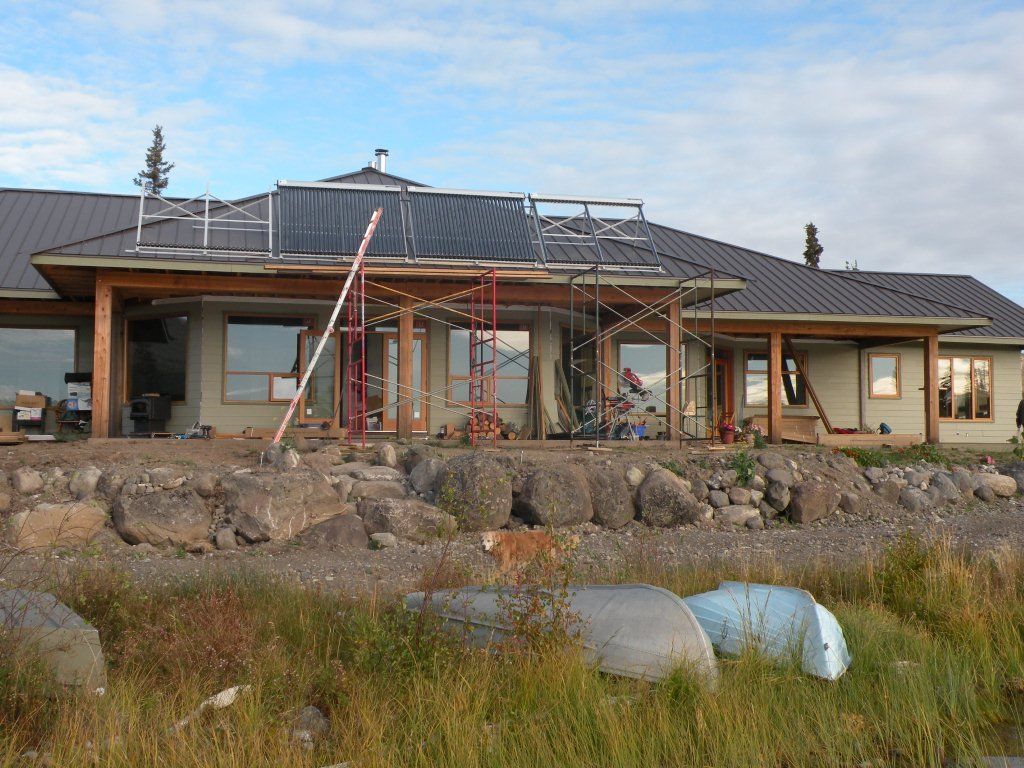

Big Bar Lake

House Summary

  • Home is 2300 sq. ft with an additional 550 sq.ft. guest suite.  Home is well Insulated.
  • South facing roof, 50 ft. from lakefront.  The south facing roof means a clear line of site for the solar collectors to pick up the sunlight.
  • The roof is 4/12 pitch
  • Two garages [1100 ft. total ].
  • Covered outdoor concrete decks [1000 ft2]
  • All areas plumbed with infloor heating pipes laid into the concrete floors.
  • Approx 3500 ft of 1/2" pex pipe buried into the concrete floor of the house
  • Approx 2500 ft2 of 1/2" pex pipe in the garage floors for heating
  • Approx 1000 ft2 of 1/2" pex pipe in the covered decks.
  • The porches and garages and suite are divided into 7 heating zones and the house divided into another 5 or 6 zones.
  • From the tank to the collectors is about 200 ft of 3/4" Flexible Insulated Stainless Steel Solar Pipe.


Solar Storage Tank

During the building plans the homeowner had a 1700 Gallon (yes 1700) water tank installed in the insulated basement while the foundations were built.

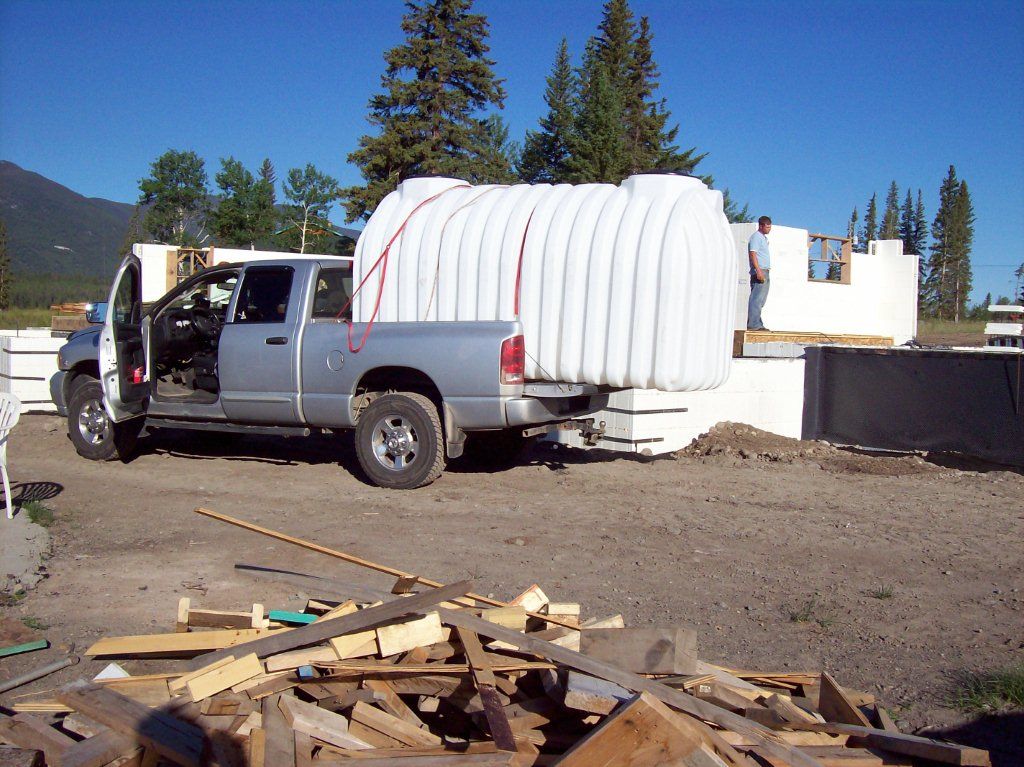

The tank was bought from Barr Plastics in Abbotsford BC.  The tank cost about $1500.  We have been told shipping a similar tank to Alberta would be less than $200.

large solar tank

The home was then built around the tank.  If you are thinking of building a home and want to include a solar water heating system you need to plan to put a large tank in during the build.  It is normally not possible to install a tank this size once the house has been framed. You might not need a tank this large but dont forget to plan ahead.

Solar heating for homes

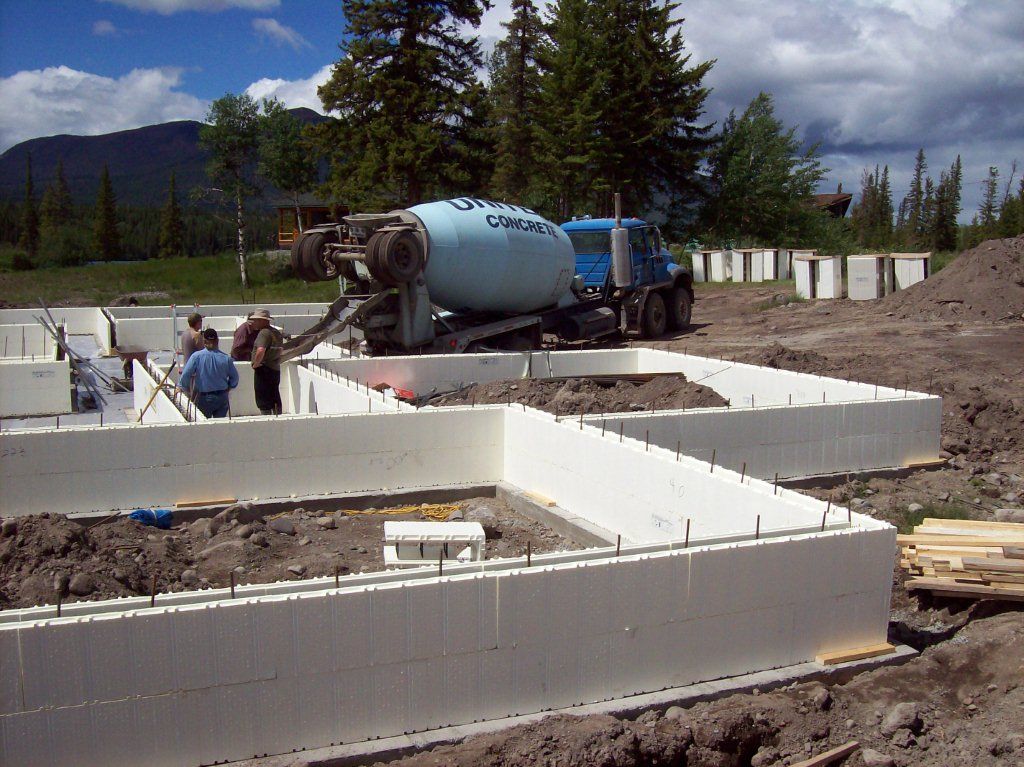

This view (above) is with the foundation for the guest suite in foreground, to be backfilled for slab on grade,the two closest men are standing in the area designated for the storage tank and to their right is garage #1 to be backfilled.

The tank is in an insulated concrete room in the basement.  The tank room is more or less central to the house and below the main floor mechanical room where the smaller 60 gollon water tank and all the hydronic manifolds were located.

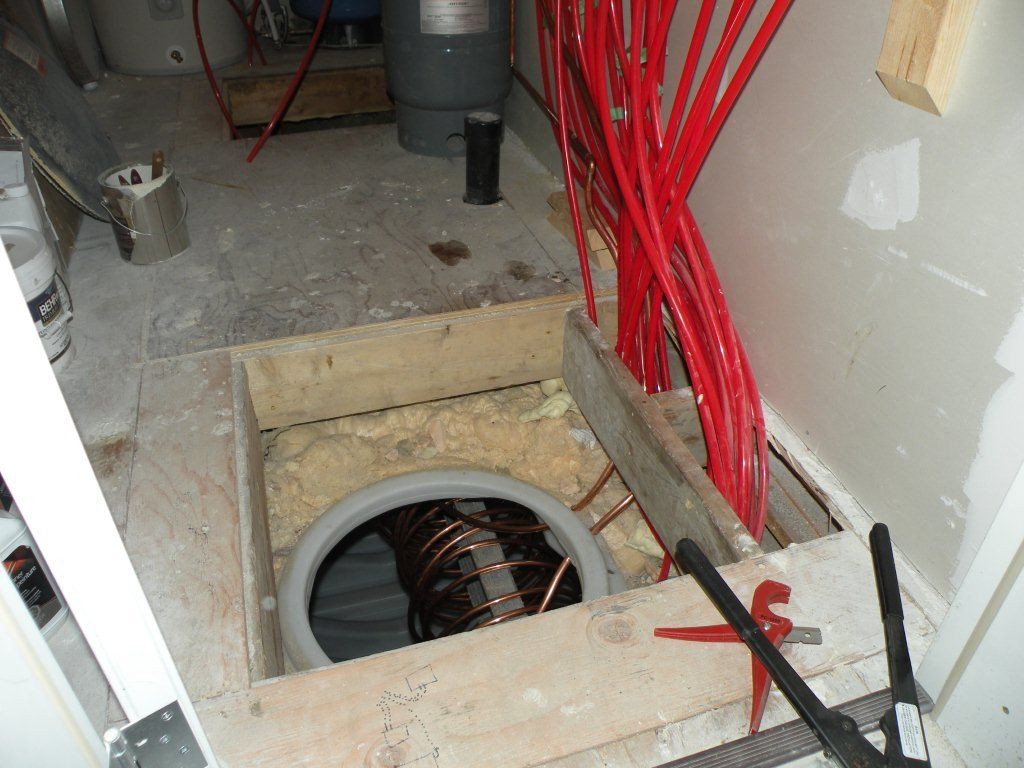

You can see the entrance to the tank in the floor of the mechanical room in this photo.

Solar hot water  storage tank below mechanical room

The owner then filled the gap around with the 1700 gallon tank with all the spare bits of insulation that were left over from the house build (no disposal costs), then spray foamed over the top.

This tank was filled with water.  The initial water temperature in the 1700 gallon tank was 35 Deg F (1.66 Deg C).

Energy Stored in the Tank.
Four x 30 tube evacuated tube collectors (120 tubes) were installed on the roof, ever only 90 tubes were initially installed and connected up ready to flow 1st November 2010.  These 90 tubes heated 1700 gallons of water up to 72 Deg F (22.2 Deg C) by the end of December.

Remember this system only had 2 months of cloudy, cold weather in BC to heat the tank.  November and December are 2 of the 3 worst months to collect solar energy.  When the additional tubes are added and given the summer to heat the tank, this tank will be storing a huge amount of heat.

Solar Heat Exchanger Coils.
Into the 1700 gallon tank were 3 coils of copper.  As the tank was not specifically designed to be a solar tank the owner had to think of a way to suspend the heat exchanger coils in the tank.  He had an old Aluminium ladder which he pushed through the man hole cover of the tank and hung it in the tank.  The Heat exchanger coils (copper coils) were suspended from the ladder in the tank.

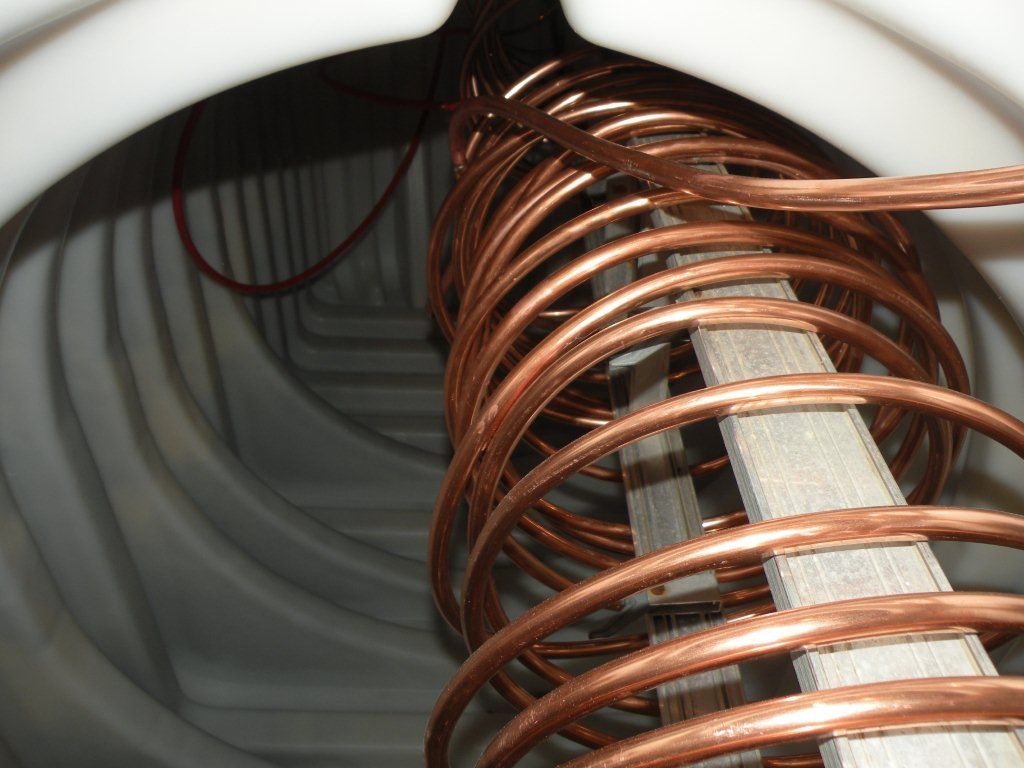

You can see in the picture below the first coil attached to the ladder inside the tank.

Solar heat exchangers inside horizontal solar tank

The tank had the folling solar heat exchanger coils installed

  • 150 ft copper coil from the solar collectors to the tank - this heats the tank up.
  • 100 ft copper coil that takes the infloor heating fluid through the tank first to warm up before flowing to the infloor heating pipes.
  • 100 ft copper coil that pre-heats all the domestic water coming from the mains supply to the hot water tank.
  • 100 ft copper coil of copper from a back up electric heater.


Solar Pump Station

The Solarbloc pump station is programmed to turn on when the temperature of the collector is 10 degrees hotter that the tank it is heating.  In this case it turns on when the collector temperature reaches 100 Deg F (37.8 Deg C).  The solarbloc solar pump station will pump the closed loop glycol/water mixture through the collectors where it heats up before flowing through the coil in the 1700 gallon tank.

During Nov and Dec 2011, the coldest temperature outside was -25 Deg C (- 13 Deg F) and the collector was still covered in frost but the collector quickly heated up to 100 Deg F when the solar pump turns on.

As the tank heats up, the Solabloc decides to turn its self on as soon as the collector temperature exceeds the tank temperature and can heat the tank.  With the variable speed pump in the solar pump station, the flow rate is adjusted to ensure the optimum temperature of the glycol to maximize the transfer of heat into the large solar tank.

Advantages of the larger solar water tanks

Solar collectors work more efficiently when heating low temperatures water in the tank.  As the solar collectors heat the tank up this means the efficiency of the collectors decreases the hotter the tank gets.  Hence with larger tanks the water is not as hot, but there is more of it so your collectors work more efficiently for longer and collects as mush heat as efficiently as possible.  This can be seen in the graph below.



Efficiency of solar collectors

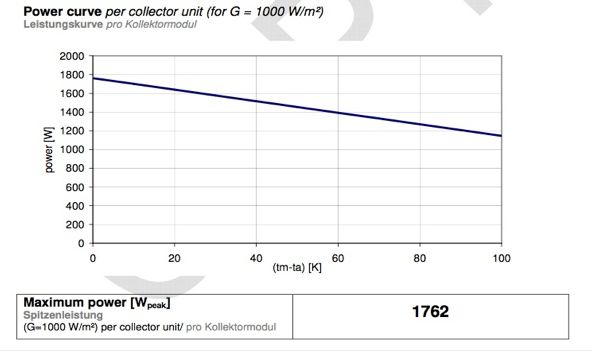

In the above graph, the line slopes down to the right.  All solar collectors power curve slope the same way.  All this means is that when heating water, the colder the water it is heating, generally the more efficient the collector is.

The X axis shows the temperature differential, ie the differential between the collector temperature and the water it is heating.  On the left side the the maximum efficiency is at the X axis = 0  The Power (W) is 1762.  On the right side, at X = 100, the power output drops to about 1180.

A simplistic explanation of what this means in practice is that with a very large solar tank when the tank is 50 degrees F, in the morning as soon as the sun is coming up,  as soon as they are about 60 degrees F they will be heating the tank.  The solar pump stations are generally set to turn on the pump when the collectors are 10 degrees hotter than the tank.

The temperature differential in this case is only 10 degrees so they are working very efficiently.

As there is such a large volume of water in a 1700 gallon tank, the temperature doesn't rise very fast as the tank stores a lot of heat.   As the sun reaches midday, the collectors will be very hot and the temperature difference, between the tank and the collector will be higher, i.e decreasing efficiency. However as the sun goes down in the afternoon and evening, as the tank temperature is still fairly low (but contain a lot of stored BTUs), the collectors can still heat the tank as the collectors are cooling down at sunset.

Remember that as the collector temperature is now falling the efficiency of the collectors is increasing as the sun is going down right up to the point the collector temperature falls below the tank temperature.

Compare this to what happens when you are heating a small tank.  As the small tank heats up quickly the collectors can only heat it when they are hotter than the tank.  In summer a 40 or 60 gallon tank can be very hot 60 to 80 deg C (140 Deg F or 176 Deg F) by midday.  This means as soon as the tank reaches its maximm temperature, the closed loop solar system must start to "dump" any excess heat.  Then during the afternoon the solar collectors and you are wasting heat that could be collected and stored even though they will still be very hot.   As they start cooling down through the afternoon and evening the small tank will still be very hot so no solar heating of the tank can occur.

Evacuated Tube solar collectors

As we descried in this article "Heating Homes with Solar" unless you have a endless budget, or you live in Hawaii, do not even think of trying to heat a building with flat plate solar collectors.  Evacuated tube collectors can produce 1100% more heat in cold cloudy conditions than a flat plate collector will.

In this home the owner purchased 4 x 30 tube collectors.  However at the time of writing only 3 of the collectors (90 tubes) had been installed and the pipework had not yet been fully insulated.

Infloor Heating - the only way to really heat your building.

As we have discussed in Heating Homes with Solar, the only really efficient way of heating a home is with infloor heating.  You run warm water through the floor (say at 20 deg C).  This means the floor you walk on is warm, warm air rises past your head and makes you feel warmer with lower temperature water.

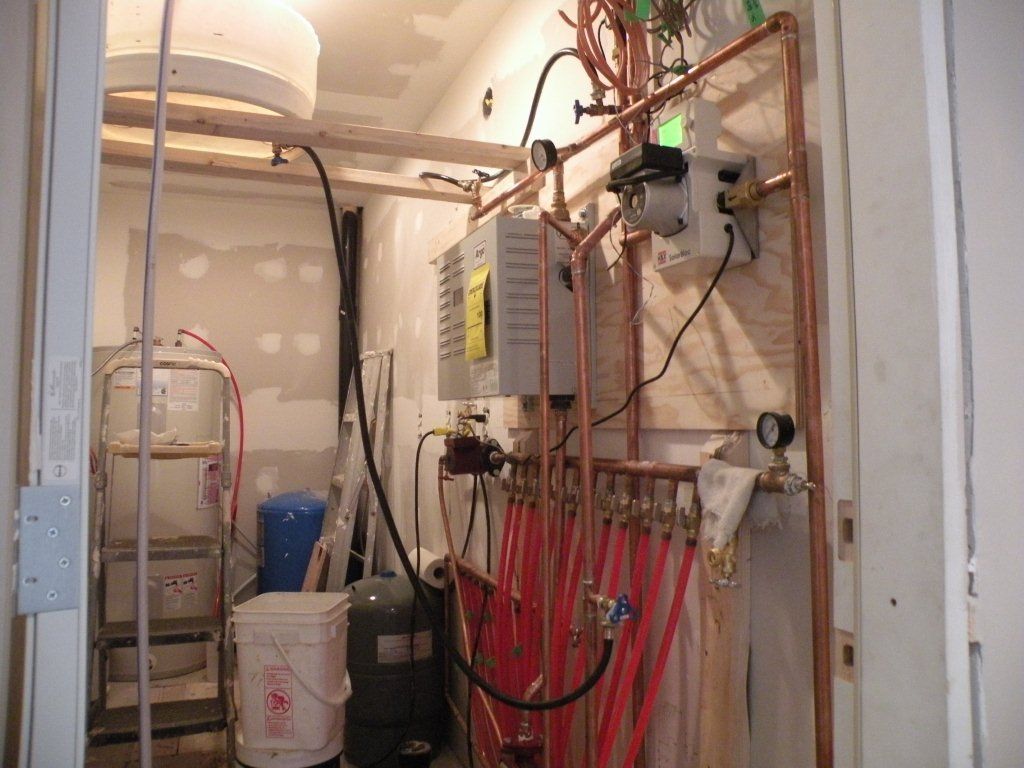

Solarbloc pump station


In this house, the infloor heating fluid flows through the heat exchanger in the 1700 gallon tank before entering the various zones of the house, this warms up the floor using solar heat first.  You can see the Solarbloc solar pump station onthe wall above and also the various red pipes feeding the various zones of the house.

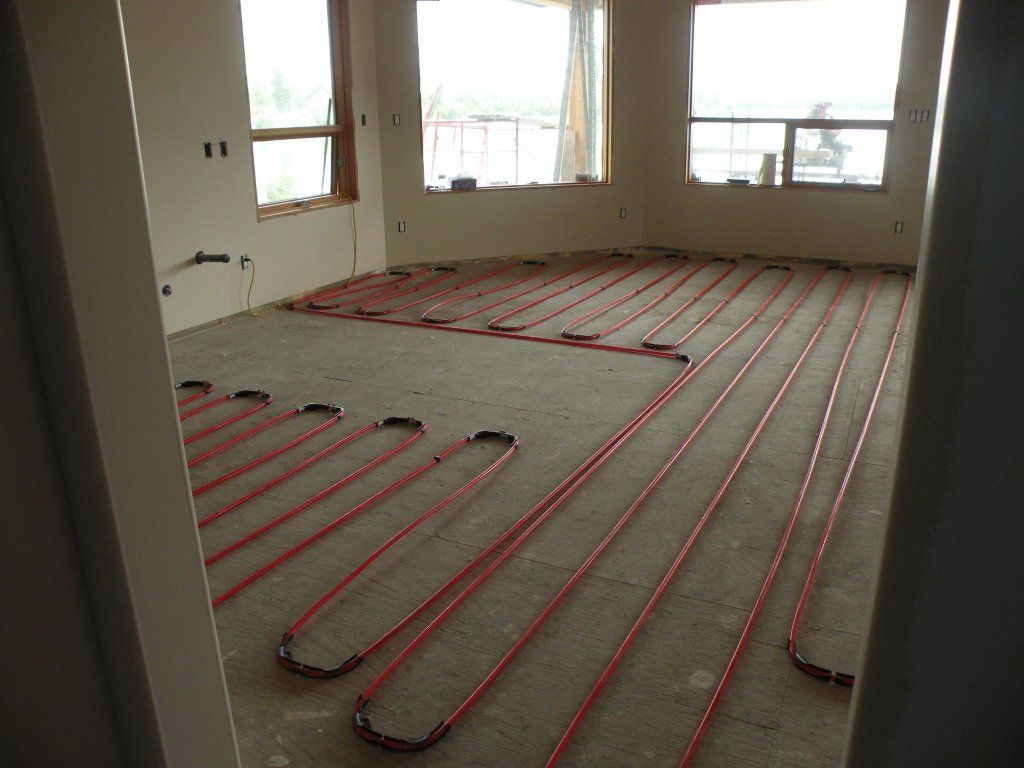

Solar - Infloor heating system


The owner installed a back up electric heater to boost the heating temperature if the home was too cold.  At the time of writing the owner said this back up heater had not yet been needed (during Nov to Mid Jan 2012)

In a normal heating system, the infloor heating would be set by the home owner, probably at about 20 Deg C. In a "normal" home infloor heating system the floor temp might be controlled to pump fluid through the floor at 20 degrees all the time to maintain the room temperature.

In this case, the floor loop fluid is pumped first through the heat exchanger coil in the 1700 gallon tank. This to to try and make sure that the fluid comes out of the tank already heated to the tank temperature.  The large volume of heat in the large volume of water means that the floor loop fluid will more or less be at the temperature the 1700 gallon solar tank is.

The system was only connected live on the 1st November 201, and by the end of December the temperature of about 1700 gallons of water had been raised from 35 Deg F to about 73 Deg F by the solar system.  The owner reported that when the tank was at about 73 Deg F, over night the tank would drop about 1.5 degrees while heating the house.   The next day the tank gets temperature boost once the solar kicks in again.

73 Deg F = about 22 deg C which is warm enough to heat the house floor.

In practice this could be fed through an inline water heater to boost the floor loop fluid to 20 degrees (or whatever the temperature you want the house to be at) if the solar preheat tank is not hot enough.

In this case though, there isnt an inline heater in the system so the fluid temp in the floor will fluctuate depending on the temperature of the solar tank.    The tank temperature will fluctuate, up due to more sun, or down due to heat loss during the night.

The owner reported that the main house (approx 2500 ft2) was being heated by the infloor heating and not the garages and decks, however the back up electric heater had not yet kicked in to boost the infloor heating in the home, this was in spite of outside temperatures dropping to - 25 Deg C.

Last time I spoke to the owner, the weather had been particularly cold and had been very cloudy for approximately 7 days so the tank had dropped from about 73 degrees to 55 degrees F over about 7 days which was getting too low to really heat the house, however this shows the importance of having the large tank, the tank acts as a store of heat.

The owner reported "...after several days of overcast and snow  at –10 deg. the tank was 55 deg., at 8.45 this morning (feb 13th 2012) the pump turned on and at 4.30pm the tank was at 60 deg. I still haven’t installed 30 tubes and I haven’t completed insulating the piping to the collectors.

This is quite an achievement.  Only 90 tubes have been installed so far which is a very small number of collectors.  We would normally recommend many more than 3 collectors for heating a home of this size.

How many BTUs does the solar system produce?

Remember that this sysem is only partially installed and isnt not yet fully insulated so there will be more heat loss than there will be when it is fully complete.

It takes 8.34 BTU to heat 1 gallon of water 1 degree F.

Hence 1700 gallons raised 5 degrees = approx 71,000 BTU (on a cloudy, cold day in February 2012)

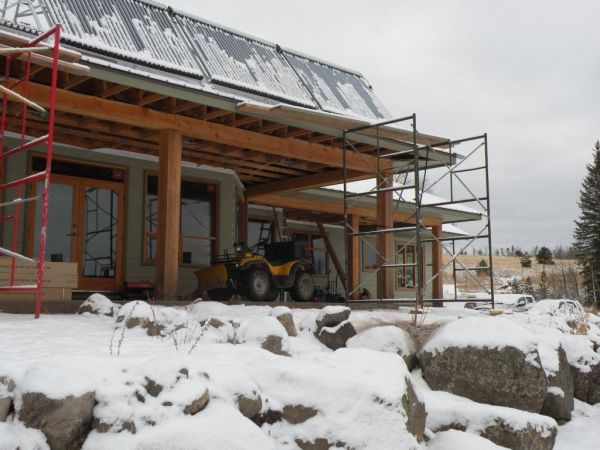

This photo below was taken by the owner and sent along with this comment...." even in the snow or frost the uncovered areas of the collectors gather heat, from the sides, until the snow or frost slides off......after several days of overcast and snow  at –10 deg. the tank was 55 deg., at 8.45 this morning the pump turned on and at 4.30 the tank was at 60 deg. I still haven’t installed 30 tubes and I haven’t completed insulating the piping to the collectors."

Solar Collectors in the snow

Summary
There are many "rules of thumb" for solar heating.  We have often seen estimates (and used them ourselves) of approx 30 tubes for every 100 ft2 of home.  This number however covers a wide range of "average" homes including forced air heating which is very inefficient and can vary up or down a lot.

There are many factors which we described in this article here.  "Heating homes with solar"

The exciting thing about this example is to show that even a small number of evacuated tubes can help heat a home so long as you deisgn and build the house with energy conservation in mind from the beginning.
