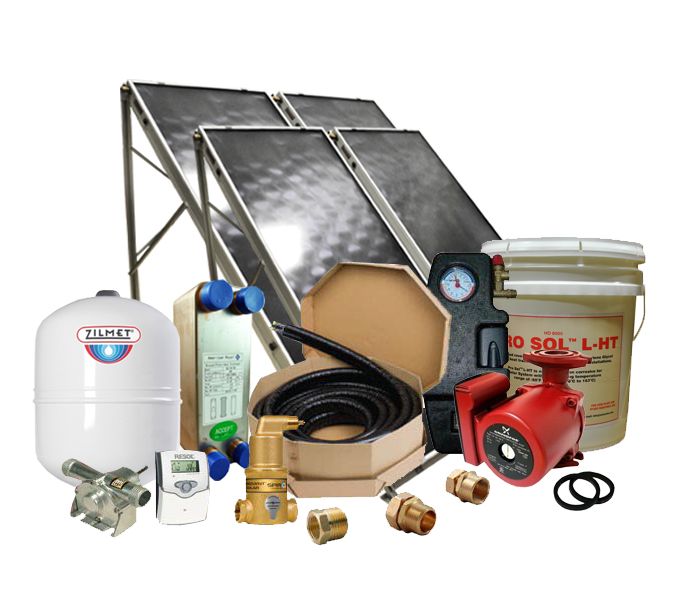

Solar Hot Water Retrofit Kit - 4 Flat Plat Collectors

Solar Hot Water Retrofit Kit - 4 Flat Plat Collectors

Our Price : USD$ 3,326.67
(Excl. tax)
SKU : N-299
Features:

  • Complete Retrofit Solar Heating Package SWHr-F4
  • 2 x FPC 1200D
  • Flat Panel Solar Collector


Solar Hot Water Retrofit Kit - 4 Flat Plat Collectors

01
Complete Retrofit Solar Heating Package SWHr-F4
02
2 x FPC 1200D
03
Flat Panel Solar Collector
Solar Hot Water Retrofit Kit - 4 Flat Plat Collectors

Solar Water Heating Retrofit System works with existing water tank for Moderate Climates

SRCC Certified for 30% Tax Credit

Solar SRCC certification

Complete solar heating package for domestic hot water for up to 8 person. These are the most advanced solar water heating kits on the market. Simple to install with no soldering or electrical wiring required. All kits come with every component you will need to successfully install your solar heating system. Includes items such as fill pump for quick pressurization and servicing of the heating system. All kits come standard with RESOL DeltaSol BS+ controller with two relays and includes advanced features such as holiday mode and energy monitoring.

Moderate-Warm Climates

This solar retrofit kit is designed for use year round including moderate climates. The system will work up to 0°F and uses advanced solar heating fluid to protect against freezing. An external plate heat exchanger is used to separate the energy from the solar loop and the potable water loop. NOTE: For colder climate we suggest using package with solar vacuum tubes for better winter performance.

2nd Pump

Grundfos circ pump is provide for the water tank and cold water is moved through the heat exchanger gaining heat energy from the solar loop. This allows for maximum heat transfer from the solar to the domestic hot water!

DIY solar heating system's

DIY solar heating system's are designed to take the guess work out of solar heating. Modern day Flat Panel Collectors can reach temperatures exceeding 250°F, and as such proper sizing and installation is very important. All our kits have been engineered to provide the maximum performance will addressing all safety features.

Pre Heat or Direct

Pre Heat or Direct - you can run the solar system off your main tank which is called "Direct". However a two tank system where the first tank is preheated by the solar which then feeds to the main tank with back up heat is preferable as there is more mass for the solar to heat. Because the pre-heat tank provides warm water to the main tank, very little energy is used and only when the main tank needs to boost the pre-heat water supply.

CAUTION
To avoid scalding a Water Tempering Valve should be installed on domestic hot water side as the supply can be hotter than the water tank's set temperature due to the solar.

solar water heating per-heat tank layout

Includes:

01
4 x SunRain FPC 1200D Vacuum tube collector
02
Pump Station with Wilo 3 speed pump and RESOL BS plus digital controller
03
100 of Aurora Solar Flex 3/4" OD stainless steel piping, preinsulated and weather proof with sensor wire
04
all quick connect Aurora Flex Fittings for fast installation (no soldering)
05
pre-mixed ProSol LH-T high temp (475F) solar heating fluid for vacuum tube collectors
06
positive displacement drill pump for filling and servicing
07
24 liter (6.6g) Zilmet High Temp Solar Expansion tank - Specifically designed for solar heating
08
Spirotech AutoClose Solar Air Vent - World's only solar Auto Air Vent!
09
Stainless Steel 30 Plate Heat Excahnger 3/4" fittings
10
Grundfos UPC15-58FC pump for secondary heat exchanger side
11
complete solar installation manual and free technical support

Design Layout

How to Modify Existing Tank - General
