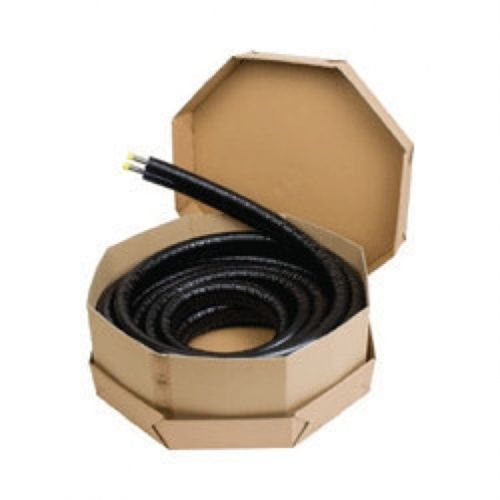

1 Inch Flexible Twin Solar Pipe, 2 x 50ft Roll
  • 1 Inch Flexible Twin Solar Pipe, 2 x 50ft Roll
  • 1 Inch Flexible Twin Solar Pipe, 2 x 50ft Roll

1 Inch Flexible Twin Solar Pipe, 2 x 50ft Roll

List Price:USD$ 589.17
Our Price : USD$ 560.83
(Excl. tax)
SKU : N-269
Features:

Fast & Flexible


1 Inch Flexible Twin Solar Pipe, 2 x 50ft Roll

Designed for quick installation of solar hot water system. This flexible steel pipe speeds up the solar installation and provides a much more economical way of running the pipes to and from your roof to the mechanical room and provide a leak free installation.

Features

01
Flexible Stainless Steel Tubing
02
UV Resistant protective coating
03
Built in sensor wire
04
3/4" Thick EPDM Insulation
05
High R Value

TechnicalSpecifications

Physical Size

Size:

Approx Weight: 12Kgs

Insulation Properties

Closed Cell Elastomerer, EPDM

Temperature Range: -50DegC to +150 DegC

Water Vapour Permeability: >3000

Thermal Conductivity: W/(m.K)

  • 0 DegC: 0.034 (R Value Approx
  • 24 DegC = 0.037
  • 32 DegC = 0.038
  • 40 DegC = 0.039

Jacket

  • UV Resistant Material
  • Tough external Coating to protect from Birds.

Temperature Sensor Wire

Operating range: -1000DegC to +200 DegC

Copper Wire: 0.75mm2

Silicon Insulation

Voltage: 300/500 V

Electrical Resistance: 23 Ohm/km

Stainless Steel Pipe

This is a 304 Steel, this is the sort of steel that is used in Cooking pans, sinks, fridges, tabletops etc. This type of steel is one of the most frequently used types of steel. It is used widely in food processing equipment, in particular in the brewing industry for beer and wine. In short it is used a lot and is good for fluid applications.

There are other types of flexible steel pipe available that use 316 Steel. 316 Steel has a higher strength and wear resistance and is typically used in Marine environments.

We can also supply a 316 grade flexible steel pipe however it is a higher costs and is not necessary for the solar applications.
